Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Name: Heavy Dump Truck HOWO Factory Direct Sale Price 64 336HP Tipper Dumper Trucks Good Price
Brand: Howo
Price: 23100 USD

Wholesale Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price from china suppliers

Brand Name : Howo

Model Number : jnhtc

Certification : ISO CCC

Place of Origin : China

MOQ : 1 UNIT

Price : USD23100-25410

Payment Terms : L/C, T/T

Supply Ability : 50 units per week

Delivery Time : 45 Work days

Packaging Details : nude

Horsepower : 336hp

Condition : New

Fuel Tank : 400L

Drive Wheel : 6x4

Tyres : 12.00R20

Capacity (Load) : 21 - 30T

Front Axle : HF9

Rear Axle : Hc16

Color : Red, Yellow, Green, Blue, White

Contact Now

Heavy Dump Truck HOWO Factory Direct Sale Price 6*4 336HP Tipper Dumper Trucks Good Price

Model	ZZ3257V3847B1
Driver's Cab	HW76 extended cab, with one sleeper berth ,with air conditioner, air seat for driver. MP3
Engine	Model: WP12.400E201, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling. Maximum output: 400PS (294kW) at 2100 rpm Maximum torque: 2060Nm at 1200-1500rpm Bore: 126mm Stroke: 155mm Displacement: 11.596L Brand: Weichai
Steering	Model: BOSCH Hydraulic steering with power assistance Left hand driving
Clutch	Φ430 Pull-type diaphragm spring clutch
Transmission	Model: HW19710, 10 forward and 2 reverse Manual type With transmission power take-off HW70 Max Torque: 1900N·M
Front Axle	Model: HF9 Drum brake system Rated loading capacity :9000kgs
Rear Axle	Model: MCP16ZG Capacity: 16000kgs Drum braking steering axle,self-adjusting arm Speed ratio:
Wheelbase	3800+1350 mm
Brake System	Type :Wabco braking system ABS 4S/4M Engine exhaust valve brake

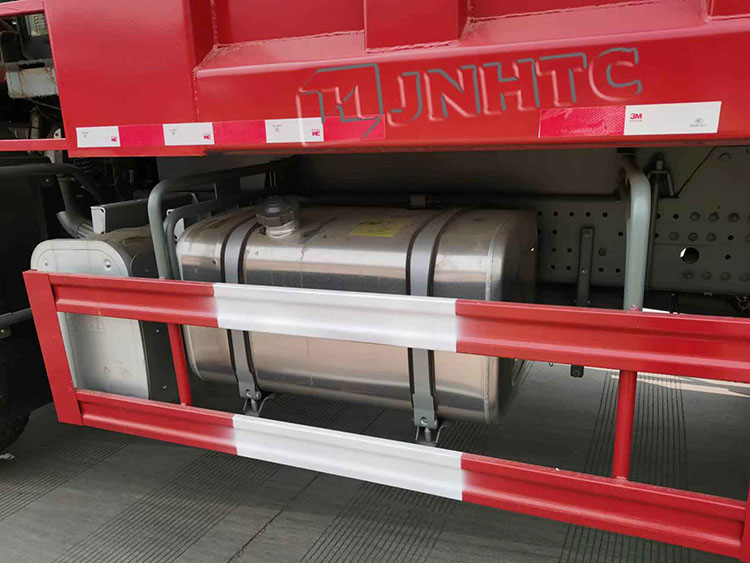

Oil Tanker	300L aluminum alloy fuel tank
Tires	Types: 12.00R20 radial tire; 18PR 10 pcs, plus one pc spare tire
Bumper	Metal bumper
Dump body	560023001500mm, 8mm for bottom and 6 mm for side plate, rectangular box, Chinese brand front lifting cylinder, with integral fender, headlight cover.
Dimensions in mm	Front wheel track (mm): 2022 Rear wheel track (mm):1830 Overhang(front/rear) (mm):1500/1870 Overall Dimension (mm): 865025803450
Weight in kg	Dead weight (kg):13500 Gross vehicle weight (kg):25000

A dump truck is a versatile vehicle used primarily in construction and mining to transport loose materials like sand, gravel, dirt, or demolition waste. Its defining feature is its ability to "dump" its load by raising the front of the truck bed, allowing gravity to unload the materials quickly and efficiently.

Here are some common types of dump trucks:

Standard Dump Truck: Has a single, fixed axle at the rear with a tilting bed that can be raised to dump its contents.
Transfer Dump Truck: Equipped with a trailer that can be used to carry additional materials, and it has a mechanism to transfer the load from the trailer to the truck bed.
Semi-Trailer Dump Truck: A combination of a truck and a trailer with a dump bed, offering more capacity and flexibility.
Articulated Dump Truck: Features a hinge between the cab and the dump bed, allowing for better maneuverability on rough terrain.

Each type has its own advantages depending on the job requirements, such as payload capacity, maneuverability, and the type of terrain it will be used on.
